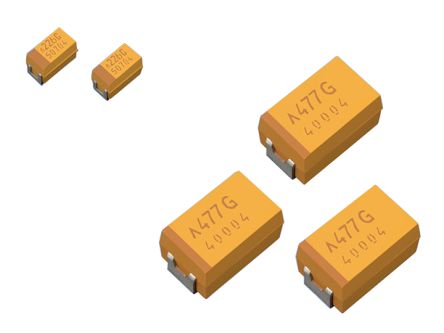

AVX Electrolytic Capacitor 10μF 6.3V dc Polymer Solid ±20% Tolerance TCJ Series [TCJR106M006R0500]; 144-1511
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Technology | Polymer |
| Capacitance | 10 µF |
| Voltage | 6.3 V dc |
| Mounting Type | Surface Mount |
| Package/Case | 0805 (2012M) |
| Equivalent Series Resistance | 500mΩ |
| Lead Pitch | 0.85mm |
| Tolerance | ±20% |
| Length | 2.05mm |
| Depth | 1.35mm |
| Height | 1.2mm |
| Dimensions | 2.05 x 1.35 x 1.2mm |
| Series | TCJ |
| Electrolyte Type | Solid |
| Maximum Operating Temperature | +105°C |
| Polarised | Polar |
| Leakage Current | 6 μA |
| Tolerance Minus | -0.2 |
| Tolerance Plus | 0.2 |
| Dielectric Material Family | Tantalum |
| Minimum Operating Temperature | -55°C |
| Dissipation Factor | 0.06 |
