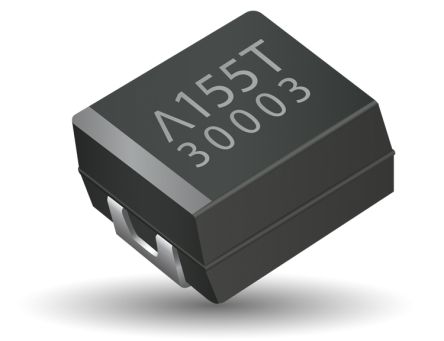

AVX Tantalum Capacitor 33μF 16V dc Polymer Solid ±20% Tolerance TCQ Series [TCQD336M016R0070]; 181-9947
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Technology | Polymer |
| Capacitance | 33 µF |
| Voltage | 16 V dc |
| Mounting Type | Surface Mount |
| Package/Case | 2917 (7343-31) |
| Equivalent Series Resistance | 70mΩ |
| Automotive Standard | AEC-Q200 |
| Lead Pitch | 4.4mm |
| Tolerance | ±20% |
| Length | 7.3mm |
| Depth | 4.3mm |
| Height | 2.9mm |
| Dimensions | 7.3 x 4.3 x 2.9mm |
| Series | TCQ |
| Electrolyte Type | Solid |
| Minimum Operating Temperature | +25°C |
| Dissipation Factor | 0.06 |
| Tolerance Minus | -0.2 |
| Polarised | Polar |
| Maximum Operating Temperature | +125°C |
| Leakage Current | 52.8 μA |
| Dielectric Material Family | Tantalum |
| Tolerance Plus | 0.2 |
