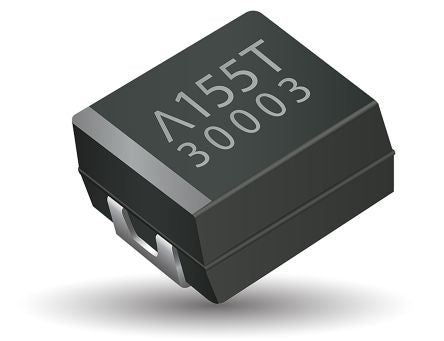

Tantalum Polymer Capacitor 100uF 25V 292 [TCQU107M025R0070E]; 186-4738
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Technology | Polymer |
| Capacitance | 100 µF |
| Voltage | 25 V dc |
| Mounting Type | Surface Mount |
| Package/Case | 2924 (7361-43) |
| Equivalent Series Resistance | 70mΩ |
| Lead Pitch | 4.4mm |
| Automotive Standard | AEC-Q200 |
| Tolerance | ±20% |
| Length | 7.3mm |
| Depth | 6.1mm |
| Height | 4.1mm |
| Dimensions | 7.3 x 6.1 x 4.1mm |
| Series | TCQ |
| Electrolyte Type | Solid |
| Tolerance Plus | 0.2 |
| Polarised | Polar |
| Dissipation Factor | 0.12 |
| Minimum Operating Temperature | -55°C |
| Dielectric Material Family | Tantalum |
| Leakage Current | 250 μA |
| Tolerance Minus | -0.2 |
| Maximum Operating Temperature | +125°C |
