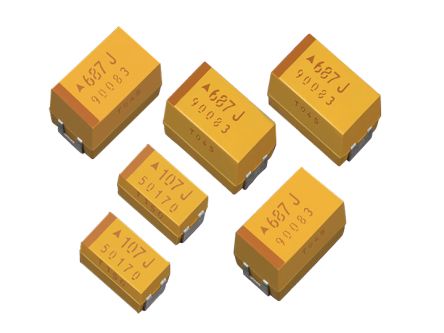

AVX Electrolytic Capacitor 22μF 10V dc Electrolytic Solid ±20% Tolerance TPS Series [TPSB226M010R0700]; 136-1555
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Technology | Electrolytic |
| Capacitance | 22 µF |
| Voltage | 10 V dc |
| Mounting Type | Surface Mount |
| Package/Case | 3528-21 |
| Equivalent Series Resistance | 700mΩ |
| Lead Pitch | 1.4mm |
| Tolerance | ±20% |
| Length | 3.5mm |
| Depth | 2.8mm |
| Height | 1.9mm |
| Dimensions | 3.5 x 2.8 x 1.9mm |
| Series | TPS |
| Electrolyte Type | Solid |
| Tolerance Plus | 0.2 |
| Leakage Current | 2.2 μA |
| Polarised | Polar |
| Tolerance Minus | -0.2 |
| Terminal Type | SMT |
| Dissipation Factor | 0.06 |
| Minimum Operating Temperature | -55°C |
| Dielectric Material Family | Tantalum |
| Maximum Operating Temperature | +125°C |
| Surge Voltage | 8 V @ 125 °C |
