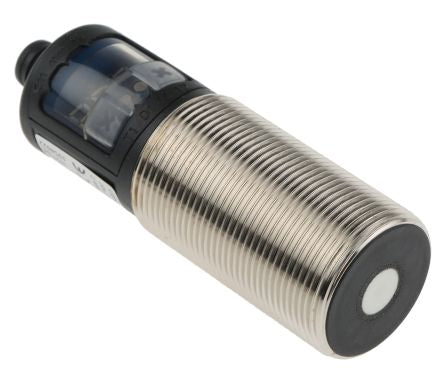

BALLUFF Ultrasonic Sensor Barrel M30 x 1.5, 65 → 600 mm, NO/NC, PNP, 5 Pole M12 Connector IP67 [BUS M30M1-PPX-07/35-S92K]; 814-1146
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Detection Range | 65 → 600 mm |
| Output Type | PNP-NO/NC |
| Body Style | Barrel |
| Thread Size | M30 x 1.5 |
| Transducer Frequency | 400kHz |
| Maximum DC Voltage | 30V |
| Supply Voltage | 9 → 30 V dc |
| Terminal Type | M12 - 5 Pin |
| IP Rating | IP67 |
| Housing Material | Brass, PBT, TPU |
| Reverse Polarity Protection | Yes |
| Minimum Operating Temperature | -25°C |
| Maximum Operating Temperature | +70°C |
| Switching Frequency | 12 Hz |
| Length | 94.5mm |
| Switching Current | 200 mA |
