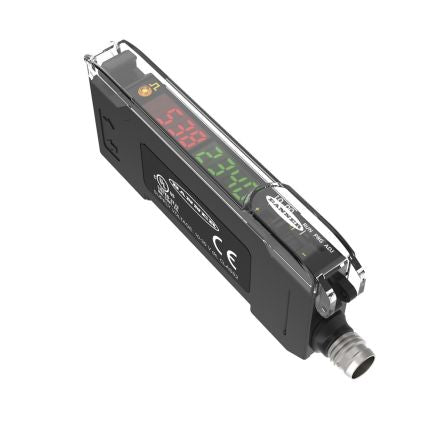

Banner Fibre Amplifier, PNP, Push Pull Output IO-Link, 960 mW, IP50, 10 → 30 V dc [DF-G1-KS-Q7]; 177-8703
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Output Type | PNP, Push Pull |
| Terminal Type | M8 Connector |
| Response Time | 2 (Long Range) ms, 5 (Extra Long Range) ms, 200 (High Speed) μs, 500 (Standard) μs |
| Light Source | Red LED |
| Electrical Connection | M8 QD Connector |
| Communication Protocol | IO-LINK |
| Power Consumption | 960 mW |
| IP Rating | IP50 |
| Housing Material | Thermoplastic |
| Supply Voltage | 10 → 30 V dc |
| Length | 86.3mm |
| Interface | IO-Link |
| Width | 10mm |
| Dimensions | 86.3 x 10 x 31.5 mm |
| Maximum Operating Temperature | +55°C |
| Mounting Type | DIN Rail |
| Standards Met | CE Certified, CULus Listed |
| Depth | 31.5mm |
| Minimum Operating Temperature | -10°C |
