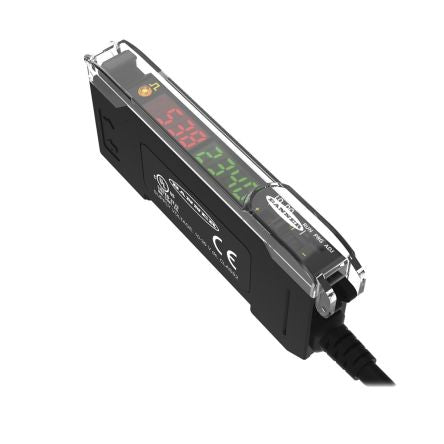

Banner Fibre Amplifier 1100 mm, PNP Output, 960 mW, IP50, 10 → 30 V dc [DF-G2-PS-2M]; 177-8708
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Detection Range | 1100 mm |
| Output Type | PNP |
| Terminal Type | Cable |
| Response Time | 10 (Super High Speed) μs, 15 (High Speed) μs, 50 (Fast) μs, 250 (Standard) μs, 500 (Medium Range) μs, 1000 (Long Range) μs, 2000 (Long Range with Immunity) μs |
| Light Source | Red LED |
| Electrical Connection | 4-Wire |
| Power Consumption | 960 mW |
| IP Rating | IP50 |
| Housing Material | Thermoplastic |
| Supply Voltage | 10 → 30 V dc |
| Length | 86.9mm |
| Width | 10mm |
| Depth | 31.5mm |
| Maximum Operating Temperature | +55°C |
| Dimensions | 86.9 x 10 x 31.5 mm |
| Standards Met | CE Certified, CULus Listed |
| Minimum Operating Temperature | -10°C |
| Mounting Type | DIN Rail |
