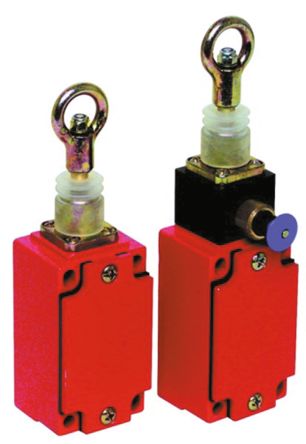

RP-LM40D Cable Switch with E-Stop, Straight, 6m, 2NC, NO/NC [RP-LM40D-6L]; 839-4570
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Series | RP-LM40D |
| Reset Button | Yes |
| Normal State Configuration | NO/NC, 2NC |
| Mounting Orientation | Straight |
| Maximum Rope Span | 6m |
| Maximum Current | 6 A @ 24 V dc, 10 A @ 24 V ac |
| Maximum AC Voltage | 230V |
| Maximum DC Voltage | 24V |
| Housing Material | Aluminium Alloy Die-Cast |
| Number of Cable Entries | 1 |
| Conduit Entry | 1/2 inch x 14 NPT |
| Size of Cable Entries | M20 x 1.5 |
| Maximum Operating Temperature | +80°C |
| Width | 40mm |
| Length | 147.5mm |
| IP Rating | IP65 |
| Minimum Operating Temperature | -30°C |
| Depth | 52mm |
| Dimensions | 147.5 x 40 x 52 mm |
| E-Stop Button | Yes |
