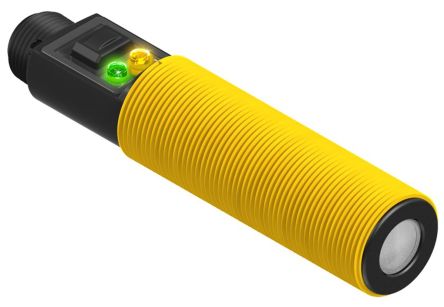

Banner Ultrasonic Sensor Barrel M18, 30 → 300 mm, Analogue, 5-Pin Euro Connector IP67 [S18UUAQ]; 850-3055
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Detection Range | 30 → 300 mm |
| Output Type | Analogue |
| Body Style | Barrel |
| Thread Size | M18 x 1 |
| Diameter | 18 mm |
| Maximum DC Voltage | 30V |
| Supply Voltage | 10 → 30 V dc |
| Terminal Type | M12 - 5 Pin |
| IP Rating | IP67 |
| Housing Material | Thermoplastic Polyester |
| Reverse Polarity Protection | Yes |
| Short Circuit Overload Protection | Yes |
| Minimum Operating Temperature | -20°C |
| Maximum Operating Temperature | +60°C |
| Length | 90.9mm |
| Dimensions | 18 (Dia.) x 90.9 mm |
| Switching Frequency | 300 kHz |
| Switching Current | 65 mA |
