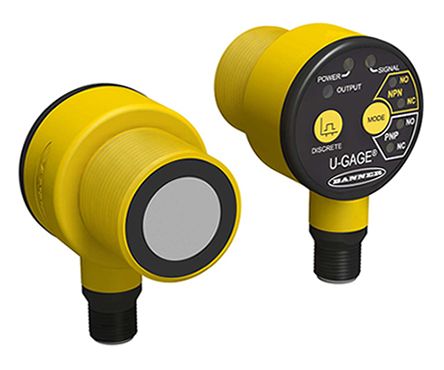

Banner Ultrasonic Sensor Block M12, 10 → 100 cm, NC, NO, NPN, PNP, 4-Pin Euro Connector IP67 [T30UXDAQ8]; 848-7193
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Detection Range | 100 → 1000 mm |
| Output Type | PNP/NPN-NO/NC |
| Body Style | Block |
| Thread Size | M30 x 1.5 |
| Maximum DC Voltage | 30V |
| Supply Voltage | 10 → 30 V dc |
| Terminal Type | M12 - 4 Pin |
| IP Rating | IP67 |
| Housing Material | PBT |
| Reverse Polarity Protection | Yes |
| Short Circuit Overload Protection | Yes |
| Switching Frequency | 224 kHz |
| Dimensions | 45 x 40.2 x 51.1 mm |
| Switching Current | 40 mA |
| Minimum Operating Temperature | -40°C |
| Depth | 51.1mm |
| Width | 40.2mm |
| Maximum Operating Temperature | +70°C |
| Length | 45mm |
