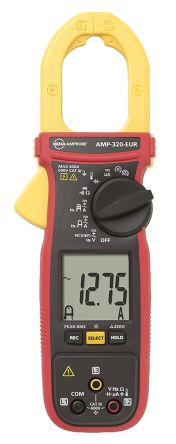

BEHA-Amprobe AMP 320 Clamp Meter, Max Current 600A ac, 600A dc CAT III 600 V [AMP-320-EUR]; 873-9734
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Absolute Maximum AC Current Measurement | 600A ac |
| Absolute Maximum DC Current Measurement | 600A dc |
| Absolute Maximum AC Voltage Measurement | 600V ac |
| Absolute Maximum DC Voltage Measurement | 600V dc |
| Absolute Maximum Resistance Measurement | 60kΩ |
| Model Number | AMP 320 |
| Best DC Current Accuracy | ±(2% rdg + 5dgts) |
| Clamp Meter Type | Multifunction Clamp |
| Best AC Current Accuracy | ±(1.8% rdg + 5dgts) |
| Best AC Voltage Accuracy | ±(1% rdg + 5dgts) |
| Best DC Voltage Accuracy | ±(1% rdg + 5dgts) |
| Maximum Operating Temperature | +40°C |
| Absolute Maximum Temperature Measurement | +400°C |
| Battery Type | AAA |
| Safety Category Voltage | 600V |
| Safety Category Level | CAT III |
| Weight | 254g |
| Jaw Capacity Busbars | 35mm |
| Maximum Conductor Size | 35mm |
| Height | 37mm |
| Minimum Operating Temperature | 0°C |
| True RMS | Yes |
| Best Temperature Measurement Accuracy | ±1 % |
| Functions Measured | AC Current, AC Voltage, DC Current, DC Voltage, Resistance, Temperature |
| Dimensions | 224 x 77 x 37mm |
| Length | 224mm |
| Width | 77mm |
| Non-Contact Voltage Detector | Yes |
| Power Source | Battery |
| Display Type | LCD |
| Best Resistance Measurement Accuracy | ±1 % + 5LSD |
| Safety Category | CAT III 600 V |
