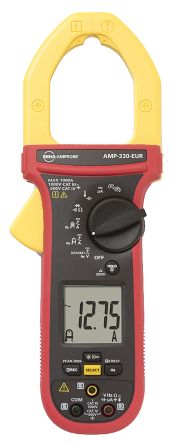

BEHA-Amprobe AMP 330 Clamp Meter, Max Current 1kA ac, 1kA dc CAT III 1000 V, CAT IV 600 V [AMP-330-EUR]; 873-9737
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Absolute Maximum AC Current Measurement | 1kA ac |
| Absolute Maximum DC Current Measurement | 1kA dc |
| Absolute Maximum AC Voltage Measurement | 1000V ac |
| Absolute Maximum DC Voltage Measurement | 1000V dc |
| Absolute Maximum Resistance Measurement | 60kΩ |
| Model Number | AMP 330 |
| Best DC Current Accuracy | ±(1.8% rdg + 5dgts) |
| Clamp Meter Type | Multifunction Clamp |
| Best AC Current Accuracy | ±(1.8% rdg + 5dgts) |
| Best AC Voltage Accuracy | ±(0.8% rdg + 5dgts) |
| Best DC Voltage Accuracy | ±(0.8% rdg + 5dgts) |
| Battery Type | AA |
| Absolute Maximum Temperature Measurement | +400°C |
| Safety Category | CAT III 1000 V, CAT IV 600 V |
| Safety Category Voltage | 600 V, 1000 V |
| Safety Category Level | CAT III, CAT IV |
| Weight | 420g |
| Display Type | LCD |
| Maximum Conductor Size | 51mm |
| Height | 44mm |
| Minimum Operating Temperature | -10°C |
| True RMS | Yes |
| Best Temperature Measurement Accuracy | ±1 % |
| Functions Measured | AC Current, AC Voltage, DC Current, DC Voltage, Resistance, Temperature |
| Dimensions | 258 x 94 x 44mm |
| Length | 258mm |
| Width | 94mm |
| Non-Contact Voltage Detector | Yes |
| Power Source | Battery |
| Maximum Operating Temperature | +50°C |
| Jaw Capacity Busbars | 51mm |
| Best Resistance Measurement Accuracy | ±1 % + 5LSD |
