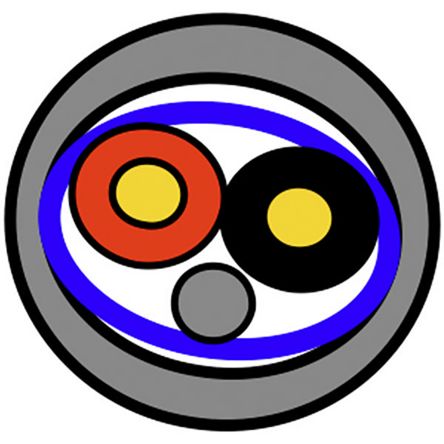

AUDIO ANALOG SINGLE-PAIR BELDFOIL 2X(AWG [70030.01500]; 187-6101
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Fire Behaviour | Low Smoke Zero Halogen (LSZH) |
| Number of Cores | 2 |
| Cross Sectional Area | 0.22 mm² |
| Screened/Unscreened | Screened |
| Insulation Material | Polyethylene |
| Outer Diameter | 3.1 (Jacket)mm |
| Minimum Operating Temperature | -30°C |
| Maximum Operating Temperature | +70°C |
| Conductor Material | Copper |
| Capacitance Core To Core | 92pF/m |
| Drain Wire | Yes |
| Capacitance Core To Screen | 180pF/m |
| Length | 500m |
| Conductor Resistance | 88.5 Ω |
| Size of Strands | 0.2 mm |
| Conductor Strand Type | Stranded |
| Sheath Colour | Black |
| Number of Strands | 7 |
| American Wire Gauge | 24 AWG |
| Core Strands | 7/0.2 mm |
