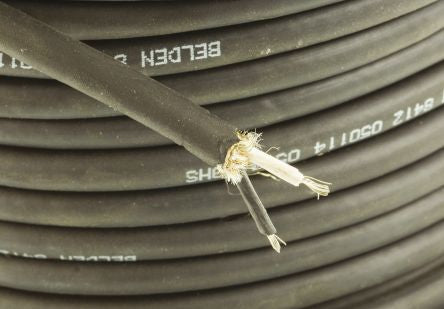

Belden 30m 2 Core Screened Black Microphone Cable, 600 V, 6.65mm od , 0.52 mm² CSA [8412 010100]; 207-4794
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Number of Cores | 2 |
| Cross Sectional Area | 0.52 mm² |
| Screened/Unscreened | Screened |
| Insulation Material | EPDM |
| Outer Diameter | 6.65mm |
| Reel Length | 30m |
| Minimum Operating Temperature | -50°C |
| Maximum Operating Temperature | +90°C |
| Capacitance Core To Screen | 190.24pF/m |
| Sheath Colour | Black |
| Number of Strands | 26 |
| American Wire Gauge | 20 AWG |
| Sheath Material | EPDM |
| Characteristic Impedance | 67 Ω |
| Capacitance Core To Core | 108.24pF/m |
| Size of Strands | 34 AWG |
| Conductor Material | Copper |
| Core Strands | 26/34 |
| Conductor Strand Type | Stranded |
| Cable Shape | Multicore |
| Length | 30m |
| Current Rating | 0.166666666666667 |
| Conductor Resistance | 34.776904 Ω/km |
| Voltage Rating | 600 V |
| Screen Type | Tinned Copper Braid |
