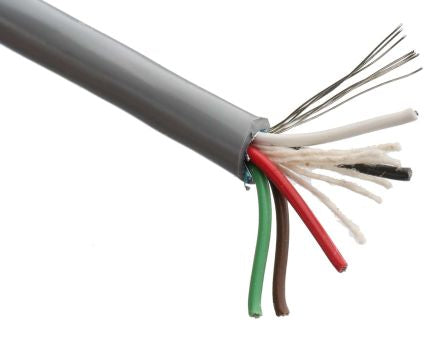

Belden 5 Conductor Foil Industrial Cable 0.22 mm² Chrome PVC Sheath, 305m Reel, 95XX Series [9535.00U305]; 382-447
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Number of Cores | 5 |
| Cross Sectional Area | 0.22 mm² |
| Screened/Unscreened | Screened |
| Length | 305m |
| Sheath Colour | Chrome |
| American Wire Gauge | 24 AWG |
| Outer Diameter | 4.57mm |
| Current Rating | 1.75 A |
| Screen Type | Foil |
| Maximum Operating Temperature | +80°C |
| Core Strands | 7/0.20 mm |
| Sheath Material | Polyvinyl Chloride PVC |
| Voltage Rating | 300 V |
| Fire Behaviour | Flame Retardant |
| Series | 95XX |
| Insulation Material | PVC |
| Conductor Resistance | 82.02 Ω/km |
| Drain Wire | Yes |
| Conductor Material | Tinned Copper |
| Minimum Bend Radius | 10 x Diameter |
| Minimum Operating Temperature | -30°C |
