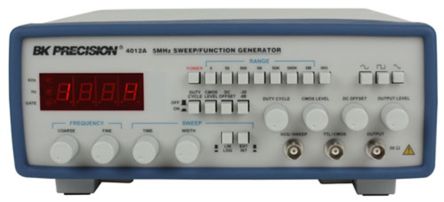

BK Precision 4012A Function Generator 5MHz [BK4012A]; 175-2534
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Maximum Frequency Range Sinewave | 5MHz |
| Minimum Frequency Range Sinewave | 0.5Hz |
| Maximum Frequency Range Square Pulse and Arbitrary Waveform | 5MHz |
| Minimum Frequency Range Square Pulse and Arbitrary Waveform | 0.5 Hz |
| Maximum Frequency Range Triangle/Saw | 5MHz |
| Minimum Frequency Range Triangle/Saw | 0.5Hz |
| Digital Frequency | Yes |
| Digital Amplitude and Offset | Yes |
| Internal Linear and Log Sweep | Yes |
| Variable Sweep | Yes |
| Time Base Accuracy | ±10ppm |
| Width | 311.15mm |
| Height | 114.3mm |
| Dimensions | 266.7 x 311.15 x 114.3mm |
| CMOS Output Level | 4 → 14V Pk-Pk |
| Attenuation | -20dB |
| Weight | 1.8kg |
| Output Impedance | 50Ω |
| Model Number p | 4012A |
| Length | 266.7mm |
| TTL Output Level | 0.8 → 2.4V |
| Input Impedance | 10 kΩ |
| Output Amplitude | 20V Pk-Pk |
| Frequency Range Square Pulse and Arbitrary Waveform | 0.5 Hz → 5 MHz |
