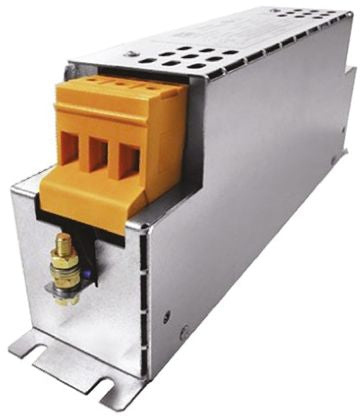

Block HLD 110 Series 55A 520 V ac 60Hz Flange Mount RFI Filter, with Screw Terminals [HLD110-500/55]; 737-7174
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Maximum Current Rating | 55A |
| Maximum Voltage Rating | 520 V ac |
| Mounting Type | Flange Mount |
| Termination Style | Screw |
| Number of Stages | Single Stage |
| Series | HLD 110 |
| Operating Frequency | 60Hz |
| Length | 85mm |
| Depth | 250mm |
| Height | 95mm |
| Dimensions | 85 x 250 x 95mm |
| Leakage Current | 200 mA |
| Maximum Operating Temperature | +50°C |
| Standards Met | CSA C22.2 No.8, EN 60939-2, UL 1283 |
| Power Loss | 30W |
