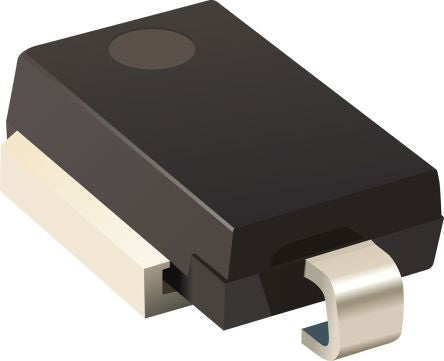

DIO TVS VWM 66V 15kW BIDIR DO218 AECQ [15KPA066C-SD-Q]; 195-2385
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Direction Type | Bi-Directional |
| Diode Configuration | Single |
| Maximum Clamping Voltage | 96.9V |
| Minimum Breakdown Voltage | 66.4V |
| Mounting Type | Surface Mount |
| Package Type | DO-218 |
| Maximum Reverse Stand-off Voltage | 66V |
| Pin Count | 2 |
| Peak Pulse Power Dissipation | 15kW |
| Maximum Peak Pulse Current | 1000A |
| ESD Protection | Yes |
| Number of Elements per Chip | 1 |
| Minimum Operating Temperature | -55 °C |
| Maximum Operating Temperature | +175 °C |
| Dimensions | 13.5 x 8.5 x 4.85mm |
| Length | 13.5mm |
| Automotive Standard | AEC-Q101 |
| Surge Current Rating | 300A |
| Height | 4.85mm |
| Width | 8.5mm |
| Test Current | 5mA |
| Maximum Reverse Leakage Current | 10µA |
