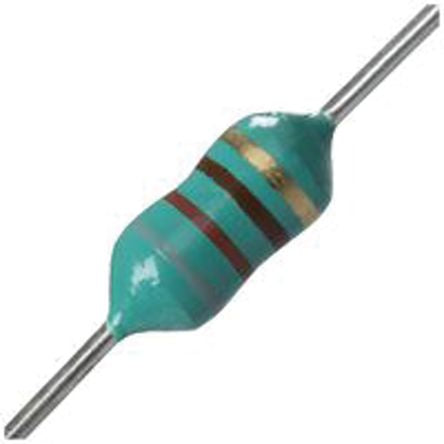

Bourns 10 μH ±5% Ferrite DR Leaded Inductor, Max SRF:18MHz, Q:40, 370mA Idc, 750mΩ Rdc 78F [78F100J-RC]; 860-4060
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Inductance | 10 μH |
| Maximum DC Current | 370mA |
| Mounting Type | Axial |
| Maximum DC Resistance | 750mΩ |
| Tolerance | ±5% |
| Diameter | 2.79mm |
| Height | 7.11mm |
| Dimensions | 2.79 (Dia.) x 7.11mm |
| Core Material | Ferrite DR |
| Maximum Self Resonant Frequency | 18MHz |
| Series | 78F |
| Minimum Operating Temperature | -55°C |
| Minimum Quality Factor | 40 |
| Maximum Operating Temperature | +105°C |
| Lead Diameter | 0.51mm |
