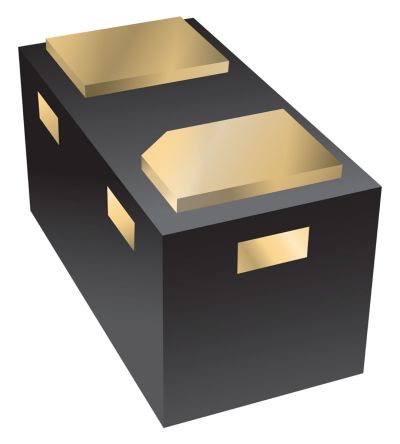

Bourns CD0201-T20C, Bi-Directional TVS Diode, 2-Pin CD0201 [CD0201-T20C]; 126-1766
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Direction Type | Bi-Directional |
| Diode Configuration | Single |
| Maximum Clamping Voltage | 34V |
| Minimum Breakdown Voltage | 22.8V |
| Mounting Type | Surface Mount |
| Package Type | CD0201 |
| Maximum Reverse Stand-off Voltage | ±20V |
| Pin Count | 2 |
| Maximum Peak Pulse Current | 16A |
| ESD Protection | Yes |
| Number of Elements per Chip | 1 |
| Minimum Operating Temperature | -55 °C |
| Maximum Operating Temperature | +85 °C |
| Width | 0.3mm |
| Height | 0.27mm |
| Dimensions | 0.6 x 0.3 x 0.27mm |
| Maximum Reverse Leakage Current | 100nA |
| Length | 0.6mm |
| Capacitance | 10pF |
| Test Current | 1mA |
