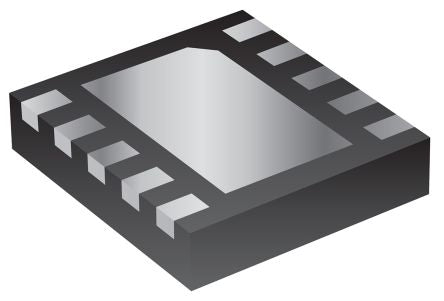

Bourns CDDFN10-3304NA, Quad Uni-Directional TVS Diode Array, 10-Pin DFN [CDDFN10-3304NA]; 165-1336
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Direction Type | Uni-Directional |
| Diode Configuration | Array |
| Maximum Clamping Voltage | 18V |
| Minimum Breakdown Voltage | 3.9V |
| Mounting Type | Surface Mount |
| Package Type | DFN |
| Pin Count | 10 |
| Maximum Peak Pulse Current | 25A |
| ESD Protection | Yes |
| Number of Elements per Chip | 4 |
| Minimum Operating Temperature | -55 °C |
| Maximum Operating Temperature | +125 °C |
| Dimensions | 2.55 x 2.55 x 0.6mm |
| ESD Voltage | 30kV |
| Maximum Reverse Leakage Current | 1µA |
| Test Current | 1mA |
| Width | 2.55mm |
| Height | 0.6mm |
| Working Voltage | 3.3V |
| Capacitance | 4.6pF |
| Length | 2.55mm |
