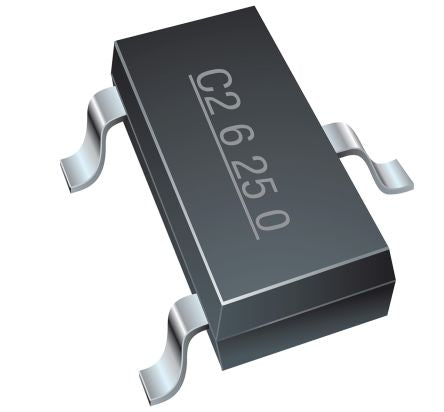

DIO TVS VWM 03V 500W UNIDIR SOT23 AECQ [CDSOT23-T03-Q]; 187-1498
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Direction Type | Uni-Directional |
| Diode Configuration | Array |
| Maximum Clamping Voltage | 7V |
| Minimum Breakdown Voltage | 4V |
| Mounting Type | Surface Mount |
| Package Type | SOT-323 |
| Maximum Reverse Stand-off Voltage | 3.3V |
| Pin Count | 3 |
| Maximum Peak Pulse Current | 43A |
| ESD Protection | Yes |
| Number of Elements per Chip | 1 |
| Minimum Operating Temperature | -55 °C |
| Maximum Operating Temperature | +150 °C |
| Maximum Reverse Leakage Current | 125µA |
| Test Current | 1mA |
| Height | 0.84mm |
| Dimensions | 2.8 x 1.2 x 0.84mm |
| Working Voltage | 3.3V |
| Width | 1.2mm |
| Length | 2.8mm |
| Capacitance | 500pF |
| Automotive Standard | AEC-Q101 |
