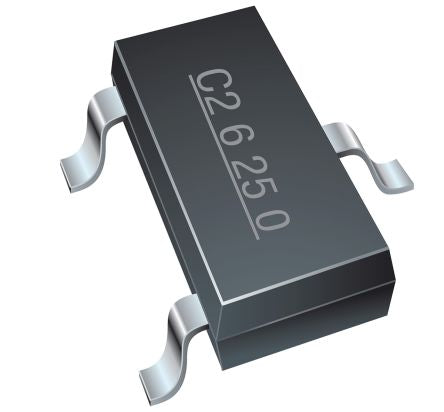

DIO TVS VWM 15V 500W BIDIR SOT23 AECQ [CDSOT23-T15C-Q]; 187-1510
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Diode Configuration | Array |
| Direction Type | Bi-Directional |
| Maximum Clamping Voltage | 24V |
| Minimum Breakdown Voltage | 16.7V |
| Mounting Type | Surface Mount |
| Package Type | SOT-323 |
| Maximum Reverse Stand-off Voltage | 15V |
| Pin Count | 3 |
| Maximum Peak Pulse Current | 15A |
| ESD Protection | Yes |
| Number of Elements per Chip | 2 |
| Minimum Operating Temperature | -55 °C |
| Maximum Operating Temperature | +150 °C |
| Length | 2.8mm |
| Capacitance | 60pF |
| Working Voltage | 15V |
| Dimensions | 2.8 x 1.2 x 0.84mm |
| Maximum Reverse Leakage Current | 1µA |
| Test Current | 1mA |
| Width | 1.2mm |
| Height | 0.84mm |
| Automotive Standard | AEC-Q101 |
