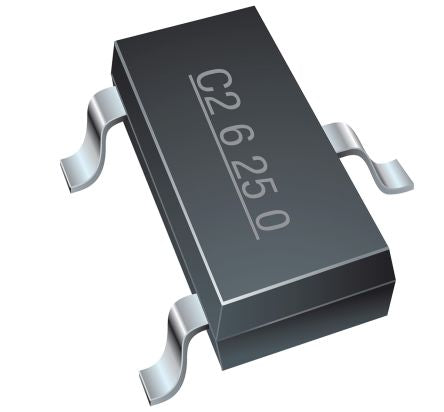

Bourns CDSOT23-T24CAN-Q, Dual Bi-Directional TVS Diode Array, 3-Pin SOT-23 [CDSOT23-T24CAN-Q]; 165-1361
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Direction Type | Bi-Directional |
| Maximum Clamping Voltage | 40V |
| Minimum Breakdown Voltage | 26.2V |
| Mounting Type | Surface Mount |
| Package Type | SOT-23 |
| Pin Count | 3 |
| Maximum Peak Pulse Current | 8A |
| ESD Protection | Yes |
| Number of Elements per Chip | 2 |
| Minimum Operating Temperature | -40 °C |
| Maximum Operating Temperature | +150 °C |
| ESD Voltage | 30kV |
| Working Voltage | 24V |
| Dimensions | 3 x 1.4 x 1.02mm |
| Maximum Reverse Leakage Current | 100nA |
| Width | 1.4mm |
| Height | 1.02mm |
| Automotive Standard | AEC-Q101 |
| Test Current | 1mA |
| Length | 3mm |
| Capacitance | 30pF |
| RMS Voltage | 1Vrms |
