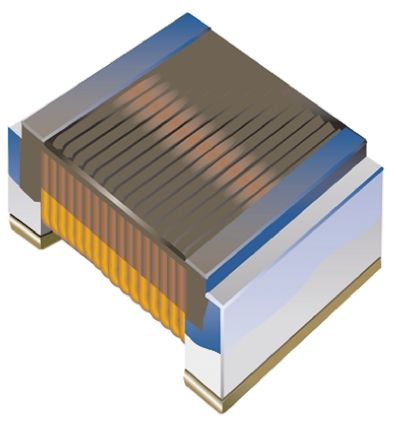

Bourns CW100505 Series Type 0402 Wire-wound SMD Inductor with a Ceramic Core, 15 nH ±5% Wire-Wound 560mA Idc Q:26 [CW100505-15NJ]; 768-9925
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Inductance | 15 nH |
| Maximum DC Current | 560mA |
| Package/Case | 0402 (1005M) |
| Length | 1mm |
| Depth | 0.55mm |
| Height | 0.5mm |
| Dimensions | 1 x 0.55 x 0.5mm |
| Tolerance | ±5% |
| Maximum DC Resistance | 172mΩ |
| Series | CW100505 |
| Core Material | Ceramic |
| Maximum Self Resonant Frequency | 3.28GHz |
| Inductor Construction | Wire-Wound |
| Minimum Operating Temperature | -55°C |
| Minimum Quality Factor | 26 |
| Maximum Operating Temperature | +125°C |
