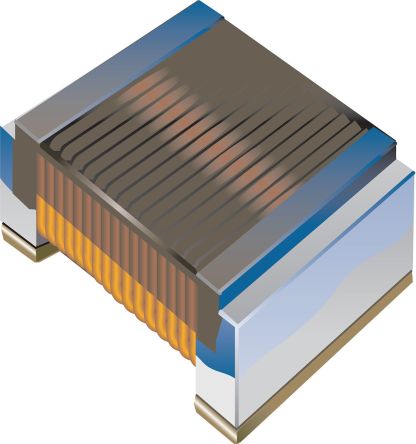

Bourns CW105550A Series Type 0402 Wire-wound SMD Inductor with a Ceramic Core, 2 nH ±0.3nH 1040mA Idc Q:16 [CW105550A-2N0D]; 183-8420
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Inductance | 2 nH |
| Maximum DC Current | 1040mA |
| Package/Case | 0402 (1005M) |
| Length | 1mm |
| Depth | 0.55mm |
| Automotive Standard | AEC-Q200 |
| Height | 0.5mm |
| Dimensions | 1 x 0.55 x 0.5mm |
| Tolerance | ±0.3nH |
| Maximum DC Resistance | 70mΩ |
| Series | CW105550A |
| Core Material | Ceramic |
| Maximum Self Resonant Frequency | 6GHz |
| Minimum Operating Temperature | -40°C |
| Maximum Operating Temperature | +125°C |
| Minimum Quality Factor | 16 |
