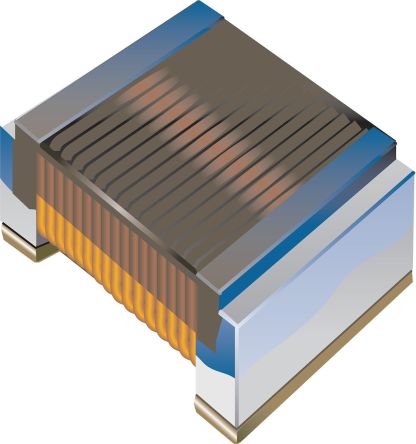

Bourns CW161009A Series Type 0603 Wire-wound SMD Inductor with a Ceramic Core, 2.2 nH ±0.3nH 700mA Idc Q:13 [CW161009A-2N2D]; 183-8526
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Inductance | 2.2 nH |
| Maximum DC Current | 700mA |
| Package/Case | 0603 (1608M) |
| Length | 1.65mm |
| Depth | 1.15mm |
| Automotive Standard | AEC-Q200 |
| Height | 0.9mm |
| Dimensions | 1.65 x 1.15 x 0.9mm |
| Tolerance | ±0.3nH |
| Maximum DC Resistance | 110mΩ |
| Series | CW161009A |
| Core Material | Ceramic |
| Maximum Self Resonant Frequency | 8.5GHz |
| Maximum Operating Temperature | +125°C |
| Minimum Operating Temperature | -40°C |
| Minimum Quality Factor | 13 |
