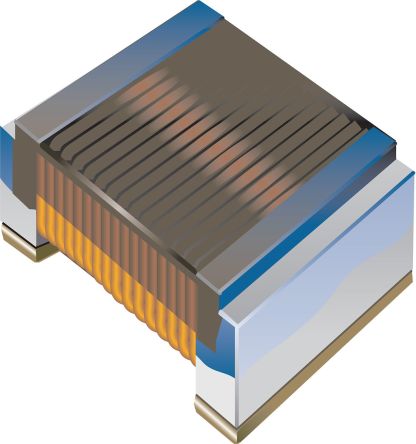

Bourns CW161009A Series Type 0603 Wire-wound SMD Inductor with a Ceramic Core, 36 nH ±5% 600mA Idc Q:36 [CW161009A-36NJ]; 183-8753
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Inductance | 36 nH |
| Maximum DC Current | 600mA |
| Package/Case | 0603 (1608M) |
| Length | 1.65mm |
| Automotive Standard | AEC-Q200 |
| Depth | 1.15mm |
| Height | 0.9mm |
| Dimensions | 1.65 x 1.15 x 0.9mm |
| Tolerance | ±5% |
| Maximum DC Resistance | 200mΩ |
| Series | CW161009A |
| Core Material | Ceramic |
| Maximum Self Resonant Frequency | 2.08GHz |
| Minimum Operating Temperature | -40°C |
| Maximum Operating Temperature | +125°C |
| Minimum Quality Factor | 36 |
