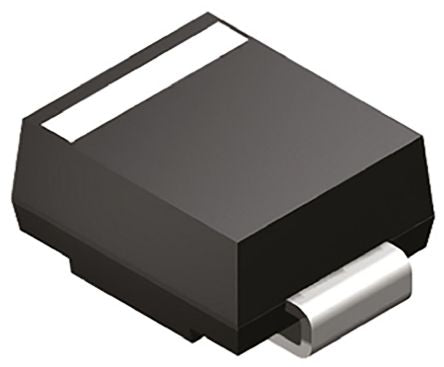

Bourns P6SMB10A, Uni-Directional TVS Diode, 600W, 2-Pin DO214AA [P6SMB10A]; 126-1751
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Direction Type | Uni-Directional |
| Diode Configuration | Single |
| Maximum Clamping Voltage | 14.5V |
| Minimum Breakdown Voltage | 9.5V |
| Mounting Type | Surface Mount |
| Package Type | DO214AA |
| Maximum Reverse Stand-off Voltage | 8.55V |
| Pin Count | 2 |
| Peak Pulse Power Dissipation | 600W |
| Maximum Peak Pulse Current | 50A |
| ESD Protection | Yes |
| Number of Elements per Chip | 1 |
| Minimum Operating Temperature | -55 °C |
| Maximum Operating Temperature | +150 °C |
| Width | 3.94mm |
| Maximum Reverse Leakage Current | 10µA |
| Length | 4.57mm |
| Dimensions | 4.57 x 3.94 x 2.23mm |
| Surge Current Rating | 42.1A |
| Height | 2.23mm |
| Test Current | 1mA |
