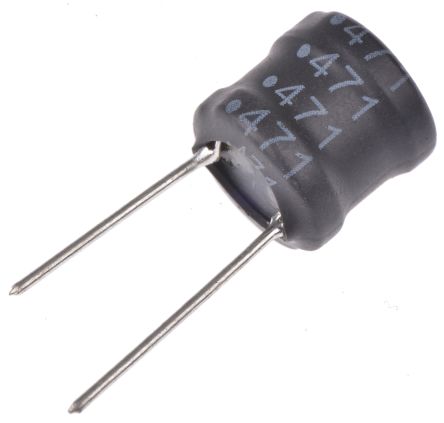

Bourns 470 μH ±10% Ferrite DR Radial Inductor, Max SRF:2.3MHz, Q:30, 460mA Idc, 510mΩ Rdc RLB [RLB1314-471KL]; 874-9772
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Inductance | 470 μH |
| Maximum DC Current | 460mA |
| Mounting Type | Radial |
| Maximum DC Resistance | 510mΩ |
| Tolerance | ±10% |
| Diameter | 11.7mm |
| Height | 12mm |
| Dimensions | 11.7 (Dia.) x 12mm |
| Core Material | Ferrite DR |
| Maximum Self Resonant Frequency | 2.3MHz |
| Lead Pitch | 7mm |
| Series | RLB |
| Lead Diameter | 0.8mm |
| Terminal Type | Radial Leaded |
| Minimum Quality Factor | 30 |
| Minimum Operating Temperature | -40°C |
| Maximum Operating Temperature | +105°C |
