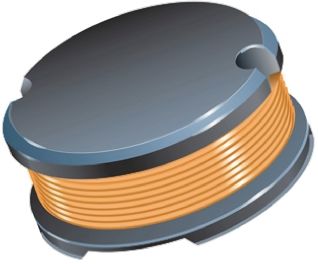

Bourns SDR0604 Series Type 0604 Wire-wound SMD Inductor with a Ferrite Core, 68 μH ±10% Wire-Wound 840mA Idc Q:22 [SDR0604-680KL]; 763-3297
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Inductance | 68 μH |
| Maximum DC Current | 840mA |
| Package/Case | 604 |
| Height | 4.8mm |
| Diameter | 5.8mm |
| Dimensions | 5.8 x 4.8mm |
| Tolerance | ±10% |
| Maximum DC Resistance | 520mΩ |
| Series | SDR0604 |
| Core Material | Ferrite |
| Maximum Self Resonant Frequency | 10MHz |
| Minimum Quality Factor | 22 |
| Minimum Operating Temperature | -40°C |
| Inductor Construction | Wire-Wound |
| Maximum Operating Temperature | +125°C |
