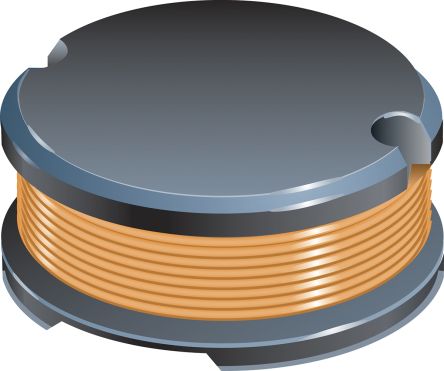

Bourns SDR0805 Series Type SMD Wire-wound SMD Inductor with a Ferrite DR Core, 56 μH ±10% Ferrite Core 940mA Idc Q:15 [SDR0805-560KL]; 172-8424
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Inductance | 56 μH |
| Maximum DC Current | 940mA |
| Package/Case | SMD |
| Height | 5.3mm |
| Diameter | 7.8mm |
| Dimensions | 7.8 Dia. x 5.3mm |
| Tolerance | ±10% |
| Maximum DC Resistance | 240mΩ |
| Series | SDR0805 |
| Core Material | Ferrite DR |
| Maximum Self Resonant Frequency | 9MHz |
| Maximum Operating Temperature | +125°C |
| Minimum Quality Factor | 15 |
| Inductor Construction | Ferrite Core |
| Minimum Operating Temperature | -40°C |
