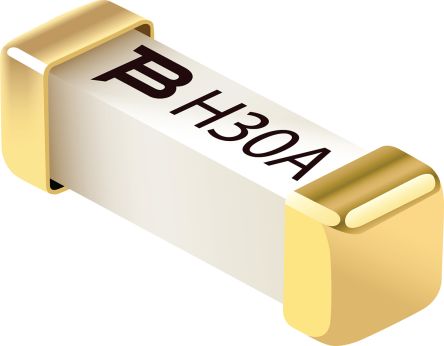

Singlfuse 3812 fast-acting 125V AC 30A [SF-3812FG3000T-2]; 187-8685
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Current Rating | 30 A |
| Voltage Rating | 125 V ac |
| Length | 10.1mm |
| Width | 3.1mm |
| Height | 3.1mm |
| Dimensions | 10.1 x 3.1 x 3.1mm |
| Fuse Speed | F |
| Body Material | Ceramic |
| Breaking Capacity at Maximum Voltage Rating | 100 A @ 125 V ac |
| Minimum Operating Temperature | -55°C |
| Maximum Operating Temperature | +125°C |
| Series | SF-3812FG-T |
| Operating Temperature Range | -55 → +125 °C |
| Resistance | 1.6mΩ |
