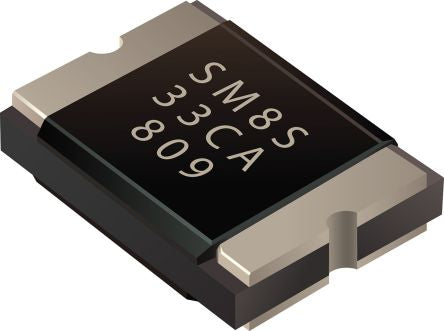

DIO TVS VWM 28V 7kW BIDIR SM8SF AECQ [SM8SF28CA-Q]; 187-1520
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Direction Type | Bi-Directional |
| Minimum Breakdown Voltage | 31.1V |
| Mounting Type | Surface Mount |
| Package Type | DFN |
| Maximum Reverse Stand-off Voltage | 28V |
| Pin Count | 2 |
| Peak Pulse Power Dissipation | 7000W |
| ESD Protection | Yes |
| Number of Elements per Chip | 2 |
| Minimum Operating Temperature | -55 °C |
| Maximum Operating Temperature | +175 °C |
| Length | 10.5mm |
| Working Voltage | 28V |
| Dimensions | 10.5 x 8.1 x 1.3mm |
| Automotive Standard | AEC-Q101 |
| Surge Current Rating | 154 (Reverse)A |
| Maximum Reverse Leakage Current | 10µA |
| Test Current | 5mA |
| Width | 8.1mm |
| Height | 1.3mm |
