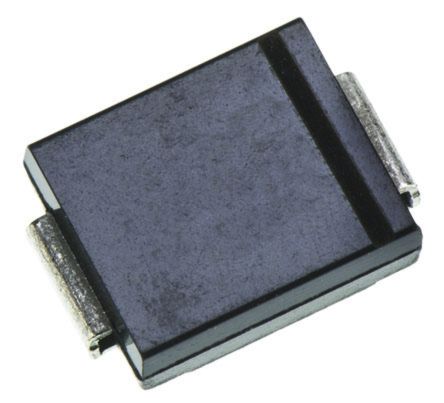

Bourns SMCJ33CA-Q, Bi-Directional TVS Diode, 1500W, 2-Pin DO-214AB [SMCJ33CA-Q]; 172-3259
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Direction Type | Bi-Directional |
| Diode Configuration | Single |
| Maximum Clamping Voltage | 53.3V |
| Minimum Breakdown Voltage | 36.7V |
| Mounting Type | Surface Mount |
| Package Type | DO-214AB (SMC) |
| Maximum Reverse Stand-off Voltage | 33V |
| Pin Count | 2 |
| Peak Pulse Power Dissipation | 1500W |
| ESD Protection | Yes |
| Number of Elements per Chip | 1 |
| Minimum Operating Temperature | -55 °C |
| Maximum Operating Temperature | +150 °C |
| Automotive Standard | AEC-Q101 |
| Length | 7.11mm |
| Dimensions | 7.11 x 6.22 x 2.41mm |
| Height | 2.41mm |
| Width | 6.22mm |
| Maximum Reverse Leakage Current | 1µA |
| Surge Current Rating | 28.1 A, 200 A |
| Test Current | 1mA |
