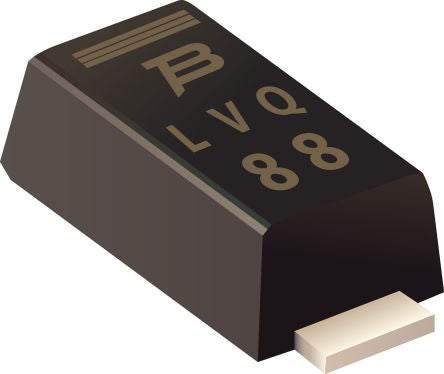

DIO TVS VWM 12V 400W UNI SMF [SMF4L12A]; 187-1517
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Direction Type | Uni-Directional |
| Diode Configuration | Single |
| Minimum Breakdown Voltage | 13.3V |
| Mounting Type | Surface Mount |
| Package Type | SOD-123FL |
| Maximum Reverse Stand-off Voltage | 12V |
| Pin Count | 2 |
| Peak Pulse Power Dissipation | 400W |
| ESD Protection | Yes |
| Number of Elements per Chip | 1 |
| Minimum Operating Temperature | -55 °C |
| Maximum Operating Temperature | +150 °C |
| Dimensions | 2.82 x 1.65 x 1.12mm |
| Surge Current Rating | 20.1 (Reverse) A, 50 (Forward) A |
| Maximum Reverse Leakage Current | 1µA |
| Test Current | 1mA |
| Width | 1.65mm |
| Height | 1.12mm |
| Length | 2.82mm |
| Working Voltage | 12V |
