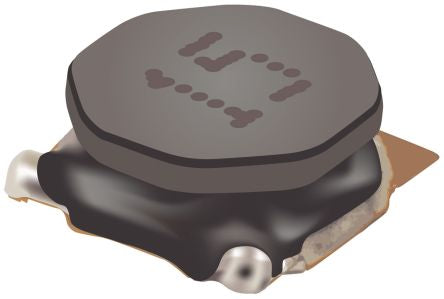

Bourns SRN4018TA Series Shielded Wire-wound SMD Inductor with a Ferrite Core, 68 μH Semi-Shielded 480mA Idc Q:10 [SRN4018TA-680M]; 135-3554
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Inductance | 68 μH |
| Maximum DC Current | 480mA |
| Length | 4mm |
| Depth | 4mm |
| Automotive Standard | AEC-Q200 |
| Height | 1.8mm |
| Dimensions | 4 x 4 x 1.8mm |
| Shielded | Yes |
| Maximum DC Resistance | 890mΩ |
| Series | SRN4018TA |
| Core Material | Ferrite |
| Maximum Self Resonant Frequency | 15MHz |
| Minimum Operating Temperature | -40°C |
| Minimum Quality Factor | 10 |
| Maximum Operating Temperature | +125°C |
| Inductor Construction | Semi-Shielded |
