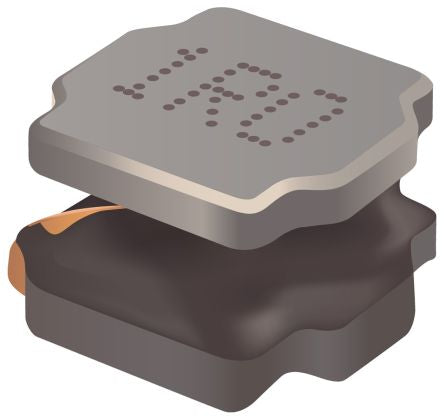

Bourns SRN6045TA Series Shielded Wire-wound SMD Inductor with a Ferrite Core, 1.5 μH ±30% Semi-Shielded 7A Idc Q:15 [SRN6045TA-1R5Y]; 135-5805
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Inductance | 1.5 μH |
| Maximum DC Current | 7A |
| Length | 6mm |
| Depth | 6mm |
| Automotive Standard | AEC-Q200 |
| Height | 4.2mm |
| Dimensions | 6 x 6 x 4.2mm |
| Shielded | Yes |
| Tolerance | ±30% |
| Maximum DC Resistance | 11.7mΩ |
| Series | SRN6045TA |
| Core Material | Ferrite |
| Maximum Self Resonant Frequency | 75MHz |
| Maximum Operating Temperature | +125°C |
| Minimum Quality Factor | 15 |
| Inductor Construction | Semi-Shielded |
| Minimum Operating Temperature | -55°C |
