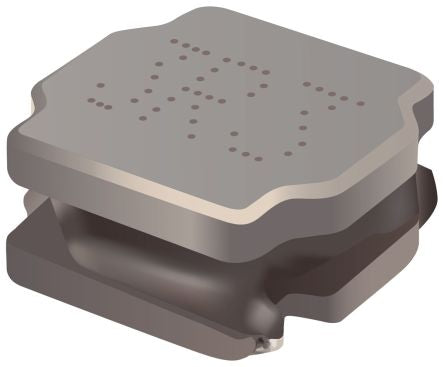

Bourns SRN8040TA Series Wire-wound SMD Inductor with a Ferrite Core, 2.2 μH ±30% Semi-Shielded 7.4A Idc Q:15 [SRN8040TA-2R2Y]; 135-5759
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Inductance | 2.2 μH |
| Maximum DC Current | 7.4A |
| Length | 8mm |
| Depth | 8mm |
| Automotive Standard | AEC-Q200 |
| Height | 4.2mm |
| Dimensions | 8 x 8 x 4.2mm |
| Tolerance | ±30% |
| Maximum DC Resistance | 11.5mΩ |
| Series | SRN8040TA |
| Core Material | Ferrite |
| Maximum Self Resonant Frequency | 57MHz |
| Minimum Operating Temperature | -55°C |
| Maximum Operating Temperature | +125°C |
| Inductor Construction | Semi-Shielded |
| Minimum Quality Factor | 15 |
