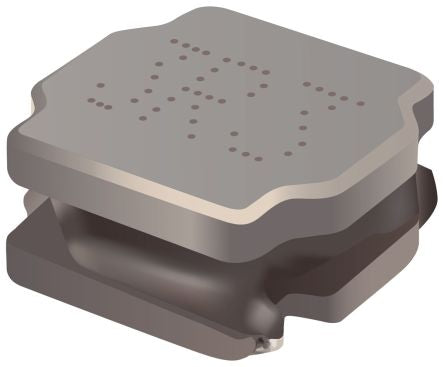

Bourns SRN8040TA Series Wire-wound SMD Inductor with a Ferrite Core, 330 μH ±20% Semi-Shielded 700mA Idc Q:10 [SRN8040TA-331M]; 135-5920
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Inductance | 330 μH |
| Maximum DC Current | 700mA |
| Length | 8mm |
| Depth | 8mm |
| Automotive Standard | AEC-Q200 |
| Height | 3.7mm |
| Dimensions | 8 x 8 x 3.7mm |
| Tolerance | ±20% |
| Maximum DC Resistance | 850mΩ |
| Series | SRN8040TA |
| Core Material | Ferrite |
| Maximum Self Resonant Frequency | 5MHz |
| Inductor Construction | Semi-Shielded |
| Minimum Quality Factor | 10 |
| Maximum Operating Temperature | +125°C |
| Minimum Operating Temperature | -55°C |
