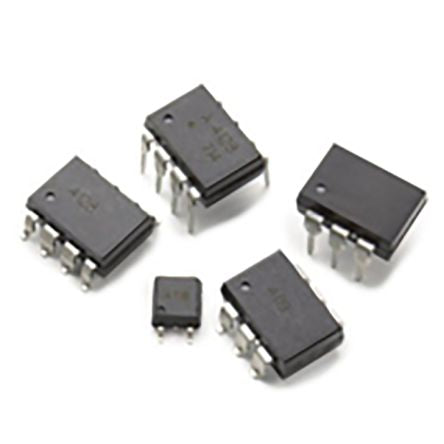

RELAY SSR 0.1A 400V AC/DC-O/P SOIC4 [ASSR-4118-003E]; 189-4789
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Maximum Load Current | 0.1 A |
| Mounting Type | Surface Mount |
| Series | ASSR-4118 |
| Minimum Load Voltage | -400 V |
| Maximum Load Voltage | 400 V |
| Maximum Control Voltage | 0.8 V |
| Switching Type | AC/DC, DC Only |
| Contact Configuration | SPST |
| Terminal Type | 4 Pin |
| Output Device | MOSFET |
| Package Style | SO |
| Maximum Turn On Time | 5 ms |
| Dimensions | 4.3 x 4.4 x 2mm |
| Special Features | High-Speed Photovoltaic Diode Array |
| Length | 4.3mm |
| Off State Leakage Current | 1 μA |
| Maximum Operating Temperature | +85°C |
| Operating Temperature Range | -40 → +85°C |
| Capacitance | 0.4pF |
| Depth | 4.4mm |
| Load Voltage Range | -400 → +400V |
| Minimum Operating Temperature | -40°C |
| Relay Type | PhotoMOSFET |
| Height | 2mm |
