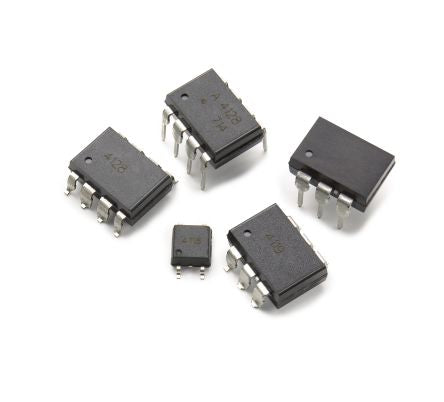

Broadcom 0.1 A SPST Solid State Relay, AC Switching, Surface Mount, MOSFET, 400 V Maximum Load [ASSR-4118-503E]; 174-3634
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Maximum Load Current | 0.1 A |
| Mounting Type | Surface Mount |
| Series | ASSR-4118 |
| Minimum Load Voltage | -400 V |
| Maximum Load Voltage | 400 V |
| Minimum Control Voltage | 1.1 V |
| Maximum Control Voltage | 1.6 V |
| Switching Type | AC |
| Contact Configuration | SPST |
| Terminal Type | PCB Pin |
| Output Device | MOSFET |
| Package Style | SO |
| Maximum Turn On Time | 5 ms |
| Dimensions | 4.4 x 4.3 x 2mm |
| Number of Poles | 1 |
| Special Features | CMOS Compatibility, CSA Component Acceptance |
| Depth | 4.3mm |
| Load Voltage Range | -400 → +400V |
| Control Voltage Range | 1.1 → 1.6 V |
| Operating Temperature Range | -40 → +85°C |
| Relay Type | Solid State Relay |
| Minimum Operating Temperature | -40°C |
| Off State Leakage Current | 1 μA |
| Length | 4.4mm |
| Maximum Operating Temperature | +85°C |
| Capacitance | 0.4pF |
| Height | 2mm |
