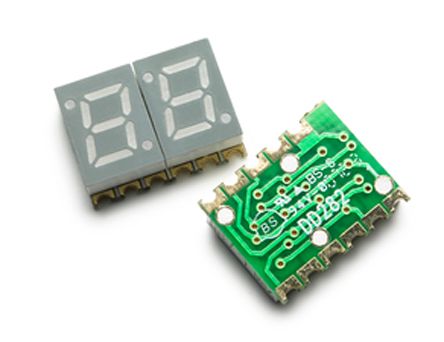

HDSM-291C Broadcom 2 Digit 7-Segment LED Display, CA Red 7.5 mcd Lower, Upper 7mm [HDSM-291C]; 178-3067
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Display Type | 7-Segment |
| Number of Characters | 2 |
| LED Colours | Red |
| Number of Segments | 7 |
| Dominant Wavelength | 632 nm |
| Character Width | 4.6mm |
| Character Height | 7mm |
| Common Connection | Anode |
| Mounting Type | Surface Mount |
| External Dimensions | 15.1 x 12 x 3.75mm |
| External Width | 12mm |
| External Height | 15.1mm |
| External Depth | 3.8mm |
| Luminous Intensity | 7.5 mcd |
| Colour of Face | Grey |
| Power Dissipation | 65mW |
| Decimal Orientation | Lower, Upper |
| Forward Voltage | 2 V |
| Series | HDSM |
| Forward Current | 25mA |
| Minimum Operating Temperature | -40°C |
| Operating Temperature Range | -40 → +105°C |
| Maximum Operating Temperature | +105°C |
| For Use With | Traffic Management |
