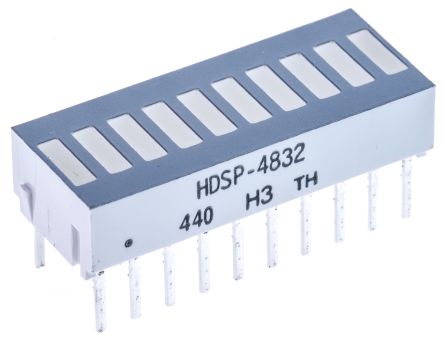

HDSP-4832 Broadcom Light Bar LED Display, Green/Red/Yellow 1900 μcd, 3500 μcd [HDSP-4832]; 178-2968
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Display Type | Light Bar |
| LED Colours | Green, Red, Yellow |
| Number of Segments | 10 |
| Dominant Wavelength | 585/571/626 nm |
| Mounting Type | Through Hole |
| External Depth | 6.1mm |
| External Height | 10.2mm |
| External Dimensions | 10.2 x 25.4 x 6.1mm |
| External Width | 25.4mm |
| Luminous Intensity | 1900 μcd, 3500 μcd |
| Colour of Face | Grey |
| Power Dissipation | 37 mW, 50 mW, 105 mW |
| Forward Voltage | 2.1 V, 2.2 V |
| Minimum Operating Temperature | -40°C |
| Maximum Operating Temperature | +85°C |
| Operating Temperature Range | -40 → +85°C |
| Forward Current | 60 mA, 90 mA |
