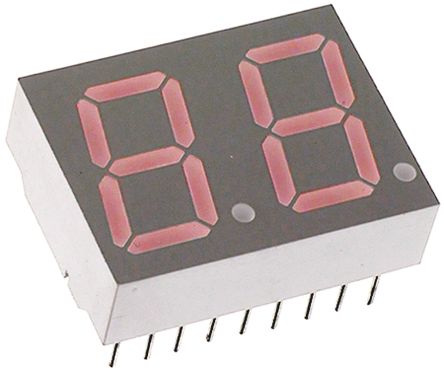

HDSP-521E Broadcom 2 Digit 7-Segment LED Display, CA Red 7.69 mcd RH DP 14.2mm [HDSP-521E]; 178-3007
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Display Type | 7-Segment |
| Number of Characters | 2 |
| LED Colours | Red |
| Number of Segments | 14 |
| Dominant Wavelength | 628 nm |
| Character Width | 7.8mm |
| Character Height | 14.2mm |
| Common Connection | Anode |
| Mounting Type | Through Hole |
| External Height | 8mm |
| External Depth | 18.6mm |
| External Width | 25mm |
| External Dimensions | 25 x 18.6 x 8mm |
| Luminous Intensity | 7.69 mcd |
| Colour of Face | Grey |
| Minimum Operating Temperature | -35°C |
| Maximum Operating Temperature | +85°C |
| Operating Temperature Range | -35 → +85°C |
| Decimal Orientation | Right Side |
| Forward Current | 90mA |
| Forward Voltage | 25 V |
