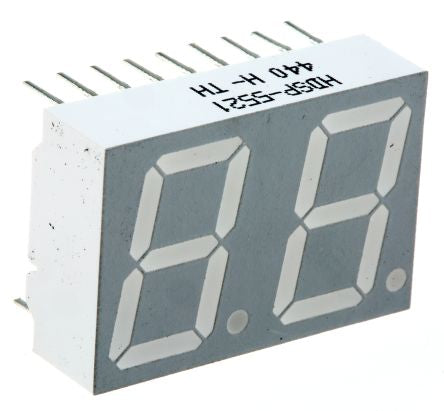

HDSP-5521-GH000 Broadcom 2 Digit 7-Segment LED Display, CA Red 3.7 mcd RH DP 14.2mm [HDSP-5521-GH000]; 178-2976
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Display Type | 7-Segment |
| Number of Characters | 2 |
| LED Colours | Red |
| Number of Segments | 7 |
| Dominant Wavelength | 626 nm |
| Character Width | 7.8mm |
| Character Height | 14.2mm |
| Common Connection | Anode |
| Mounting Type | Through Hole |
| External Height | 17mm |
| External Depth | 8mm |
| External Width | 25.1mm |
| External Dimensions | 17 x 25.1 x 8mm |
| Luminous Intensity | 3.7 mcd |
| Colour of Face | Grey |
| Maximum Operating Temperature | +100°C |
| Operating Temperature Range | -40 → +100°C |
| Decimal Orientation | Right Side |
| Minimum Operating Temperature | -40°C |
| Forward Voltage | 2.1 V |
| Forward Current | 90mA |
