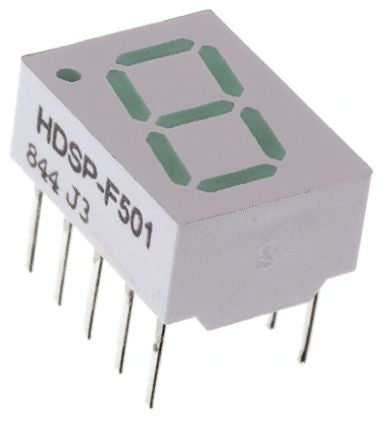

HDSP-F501 Broadcom 7-Segment LED Display, CA Green 3.5 mcd RH DP 10.2mm [HDSP-F501]; 171-1896
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Display Type | 7-Segment |
| Number of Characters | 1 |
| LED Colours | Green |
| Number of Segments | 7 |
| Dominant Wavelength | 571 nm |
| Character Width | 5.6mm |
| Character Height | 10.2mm |
| Common Connection | Anode |
| Mounting Type | Through Hole |
| External Depth | 6.4mm |
| External Height | 12.9mm |
| External Width | 9.8mm |
| External Dimensions | 12.9 x 9.8 x 6.36mm |
| Luminous Intensity | 3.5 mcd |
| Colour of Face | Grey |
| Forward Voltage | 2.1 V |
| Minimum Operating Temperature | -40°C |
| Decimal Orientation | Right Side |
| Operating Temperature Range | -40 → +100°C |
| Maximum Operating Temperature | +100°C |
| Forward Current | 30mA |
