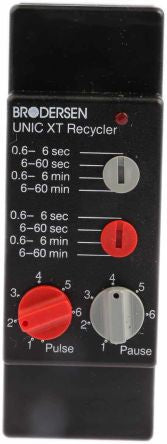

Brodersen Systems Multi Function Timer Relay, 11-Pin Connector, 0.6 sec → 60 mins, SPDT, 1 Contacts, SPDT [XT-S1]; 329-216
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Supply Voltage | 10.5 → 265 V ac/dc |
| Time Range | 0.6 sec → 60 mins |
| Mode of Operation | Asymmetrical Recycler with Pause Start, Asymmetrical Recycler with Pulse Start |
| Mounting Type | Plug In |
| Number of Timer Functions | Multi Function |
| Number of Contacts | 1 |
| Series | XT-S1 |
| Time Increment | Hours, Minutes |
| Power Supply | External |
| Contact Configuration | SPDT |
| Current Maximum | 0.333333333333333 |
| Terminal Type | 11-Pin Connector |
| Minimum Voltage | 10.5 V ac/dc, 24 V dc |
| Maximum Voltage | 265 V ac/dc |
| Length | 75mm |
| Width | 53.5mm |
| Depth | 27mm |
| Contact Material | Silver Alloy |
| Minimum Operating Temperature | -20°C |
| Maximum Operating Temperature | +55°C |
| Time Delay | 100 (Reset) ms |
| Switch Configuration | SPDT |
