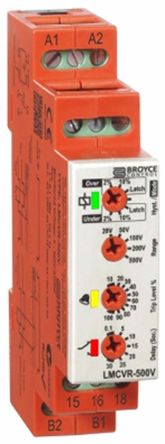

Broyce Control Voltage Monitoring Relay With SPDT Contacts, 24 → 230 V ac/dc [LMCVR-20V 24-230VAC/DC]; 850-5409
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Monitoring Application | Voltage |
| Supply Voltage | 24 → 230 V ac/dc |
| Contact Configuration | SPDT |
| Voltage Sensitivity | Overvoltage, Undervoltage |
| Voltage Sensing Range | 0.1 → 1 V, 0.2 → 2 V, 0.5 → 5 V, 1 → 10 V, 2 → 20 V |
| Time Delay | 0.1 → 30 s |
| Width | 17.5mm |
| Operating Temperature Range | -20 → +60 °C |
| Terminal Type | Screw |
| Mounting Type | DIN Rail |
| Height | 89mm |
| Length | 66.5mm |
| Series | L-Series |
| Standards Met | IEC 60664 |
| Dimensions | 17.5 x 89 x 66.5 mm |
| Minimum Operating Temperature | -20°C |
| Current Range | Maximum of 8 A |
| Maximum Operating Temperature | +60°C |
