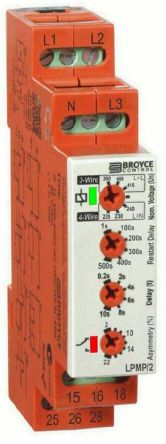

Broyce Control Phase, Voltage Monitoring Relay With DPDT Contacts, 3 Phase, 400 V [LPMP/2 400V]; 135-6182
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Monitoring Application | Phase, Voltage |
| Supply Voltage | 400 V |
| Contact Configuration | DPDT |
| Electrical Phase | 3 |
| Voltage Sensing Range | 243 → 540 V |
| Phase Sensitivity | Phase Asymmetry, Phase Failure, Phase Sequence |
| Time Delay | 0.2 → 10 s |
| Minimum Voltage Sensed | 243 V |
| Mounting Type | DIN Rail |
| Width | 17.5mm |
| Length | 89mm |
| Minimum Operating Temperature | -20°C |
| Standards Met | CE, EN 61000-6-2, EN 61000-6-4, IEC, RoHS Complaint |
| Maximum Operating Temperature | +60°C |
| Operating Temperature Range | -20 → +60 °C |
| Terminal Type | Wire Lead |
| Maximum Voltage Sensed | 540V |
| Height | 66.5mm |
| Special Features | Adjustment For Phase Asymmetry/Unbalance, Adjustment For Restart Delay, Adjustment For Time Delay, Detects Incorrect Phase Sequence, Microprocessor Based, Phase Loss And Neutral Loss |
| Dimensions | 89 x 17.5 x 66.5 mm |
